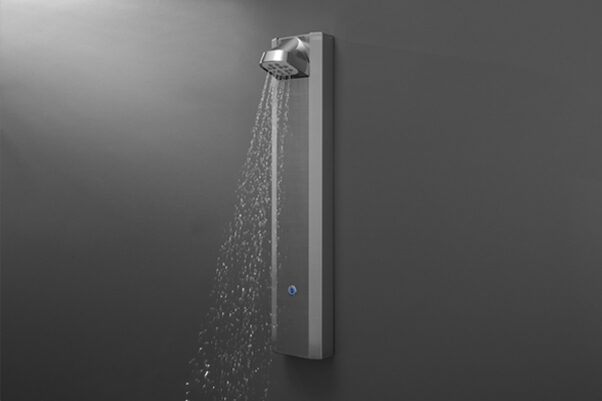

Commercial Shower Panel TF
High Efficiency Shower Panel
Kelda’s Commercial Shower Panel TF is designed for environments where durability, robust design and low maintenance are key factors. The high efficiency shower system conforms to regulatory standards while providing an enhanced shower experience with Timed Flow (TF) control to promote water efficiency. Innovative Air-Powered™ technology provides an invigorating shower experience using significantly less water and energy meaning reduced bills – and fewer carbon emissions to help protect the planet.
● Commercial specification
● Compatible with group or single feed mixer
● Robust design
● Fixed™ showerhead
● Timed Flow (TF) push-button eco-control
● H1100mm x W222mm x D86mm (D218mm showerhead)
● Part No. 93001005 (Range 93001000)
Please Enquire for Price
Key Features

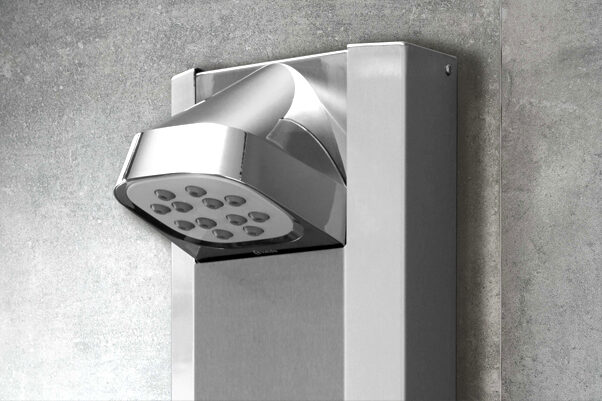

Fixed Showerhead – Fixed™
The Fixed™ showerhead features 12 patented MACRO-Jet™ nozzles, each designed to create a perfect stream of water with large MACRO droplets. The head is constructed from high impact strength engineering thermoplastic for increased durability, and fixed at the perfect angle to provide optimum spray performance – with all hair types in mind.
Water-Efficient Control

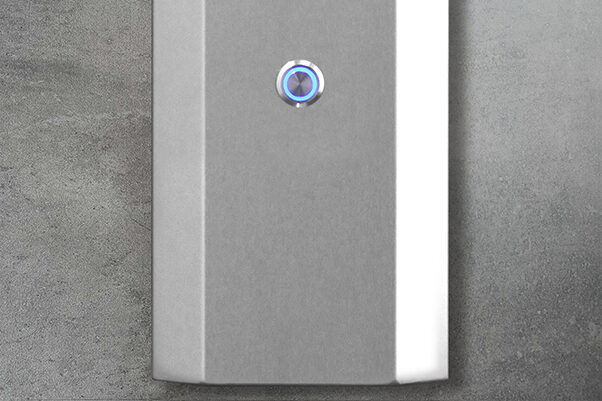

Kelda’s TF commercial specification shower panel requires a blended water supply fed by a single or group mixer (not supplied). In order to promote water reduction flow is activated by a digital push-button which can be preset from 10 to 60 seconds.
Simple Installation
Kelda shower panels are designed for upgrading surface mounted shower systems, where no void is present and no tiles or walls need to be chased. They are quick and easy to install within the shower cubicle. Furthermore servicing is made effortless as all components that require routine test and maintenance are readily accessible.
Efficient Cleaning
Compared to standard showers on the market, Kelda’s MACRO droplets are larger – yielding larger momenta. This gives the sensation of more spray pressure. With 15X more impact than a standard shower droplet a Kelda shower is more effective at rinsing shampoo out of even the thickest of hair.
Sustainable Showering
Mixers showers waste too much water and use precious resource. A Kelda shower uses 5 litres per minute of water compared to an average shower that uses 10. This means half the water and energy and therefore fewer carbon emissions. A Kelda shower maximises every droplet to reduce waste.
Immersive Experience
Imagine a shower that is designed for you and the planet. A Kelda shower atomises water into 100s of perfectly engineered MACRO droplets to ensure you feel every single one of them. We may use less water to help conserve the world’s most precious resource but we haven’t compromised on experience.
Advanced Technology
Air-Powered™
Kelda’s patented Air-Powered™ technology is drawn from decades of cutting-edge aerospace technology. Water is injected into a high velocity air stream where it is broken up into 100s of MACRO droplets that are 2.5X the size of a standard shower – making less water feel like so much more.
MACRO-Jet™ Nozzles
Kelda’s showerhead comprises an array of 12 specially engineered MACRO-Jet™ nozzles. A larger core diameter produces larger MACRO droplets – providing better thermal stability and rinsing performance. Larger nozzles also improve operational reliability as they are less likely to block and accumulate limescale.
KSMART Microprocessor
A digital microprocessor controls the optimum ratio of water and air to the showerhead for the ultimate Kelda shower experience. Kelda’s optional Shower Monitoring And Recording Technology (KSMART) can collect data on water consumption for intelligent building management systems (IBMS).
Air-Protect™
To reduce the risk of water stagnation and prevent bacterial growth Kelda’s showerhead features a single-mode spray plate with fixed spray and no moving parts. For added safety Kelda also utilises it’s Air-Protect™ technology to blow air through the showerhead after each and every use.
Technical Specification
Electrical
Input voltage: 200V-240V 50/60Hz
Rated power: 75W (during operation), 5W (standby)
Operating temperature range: 0ºC to +35ºC
Air-Powered™
Motor type: Kelda optimised centrifugal digital fan
Motor speed: Max: 40,000 rpm
Operating airflow: Up to 525 l/min
Static Pressure: Max. 4,860 Pa
Materials: FDA compliant
Noise Level: Exemplary quiet-running noise level of just 49 dB(A)
Construction
Front construction: Stainless steel 316
Under body assembly construction: Stainless steel 316
Exterior screw type: Torx 15
Water ingress protection rating of Control Hub: IPX5
Water ingress protection of transformer: IP67
Operation
Control type: Digital push-button with timed flow (10 – 60 seconds). Sequential mixer with flow control for Fixed™ showerhead
Mixer type: Requires a blended water supply fed by a single or group mixer (not supplied)
Water
Water flow rate: 5.0 l/min (Fixed™ showerhead)
Materials: WRAS approved (water path materials)
Operating Pressures: 1 – 5 bar
Connections: 150mm centres (15mm or ½” BSP)
Water Supply: Separate Hot and cold feed
Logistics
Part number: 93001000
Net weight: 11.6Kg
Packaged weight: 12.1Kg
Packaged dimensions: H1200mm x W300mm x D200mm
Components
Showerhead type: Fixed™ showerhead
Handset type: Not included
Transformer: LPV 150W-36V AC
Additional: Instruction Manual, Fitting kit
Connectivity (Commercial Only)
Wi-Fi
Utilises standard 802.11b/g/n 2.4Ghz
Data Management Software (Cloud)
Kelda WMS cloud-based platform
Memory
Micro SD card for 60 day backup data storage
4G
Optional 4G router available (no/poor Wi-Fi)
Standard guarantee
2-year guarantee
Dimensions
Product dimensions: H1110mm x W222mm x D86mm (D218mm showerhead)
Recommended installation height from showerhead to floor: 2000mm (male), 1900mm (female)
Minimum clearance: 220mm clearance either side and above product
Frequently Asked Questions
What is the flow rate of a Kelda shower?
A Kelda shower is designed to operate at 5 litres per minute (5 l/min) but thanks to the innovative Air-Powered™ technology feels like 10.
How do Air-Powered™ showers work?
Conventional ‘aerating’ showers use the Venturi principle to restrict flow and draw atmospheric air into the water through a small hole in the showerhead. This is a very cheap way to reduce the mass flow of water, and aerate it to change the ‘feel’ of the shower, but has no measurable boost in force or performance, regardless of flow rate.
In contrast, Kelda’s patented Air-Powered™ showers use the principles of fuel injection technology. Each shower features an intelligent microprocessor and powerful digital fan which controls the delivery of water and air to the showerhead. Within the showerhead, water is injected into a high-velocity air stream where it is broken up into 100s of droplets that are 2.5X the size of a standard shower. Larger droplets yield larger momenta providing the sensation of more spray pressure, making less water feel like so much more. With 15X more impact than a standard shower, a Kelda shower is more effective at rinsing shampoo out of even the thickest of hair.
Can I replace my mixer shower with a Kelda shower?
A Kelda shower has been designed to simply replace a conventional bar mixer shower. The hot and cold feed to the thermostatic mixer are set at 150mm centres, similar to a standard bar mixer shower for easy retrofit. An electrical supply is required to power the fan. Installation of this product must be carried out in accordance with these instructions by qualified, competent personnel. Please refer to the Instruction Manual for further guidance.
How do I clean my Kelda shower?
Every Kelda shower is designed using premium materials such as optical white glass and stainless steel providing a sleek design. It is designed to provide years of enjoyment but without regular cleaning, a combination of dirt, soap scum, limescale and mould can build-up and affect operation.
To help keep your Kelda shower in good working condition you should aim to clean once a week and a deep clean once a month. These will help you remove awkward limescale and prevent its build-up.
Shower Head
Limescale build up around the nozzles in your shower head not only looks unsightly, but can also affect water flow. A simple fix is to remove the showerhead components, insert into a sealable plastic bag or container and fully immerse in vinegar for at least 30 minutes. Afterwards remove and give the nozzles a quick brush or wipe to remove any remaining deposits. Finally, rinse with water and refit. Please refer to the Instruction Manual for assembly instructions.
Please Note
During regular cleaning of the shower area, do not direct a water hose at the shower head while the shower is functioning. It’s important to keep in mind that some everyday cleaners contain harsh chemical components that should not be applied directly to the surface of the shower.
