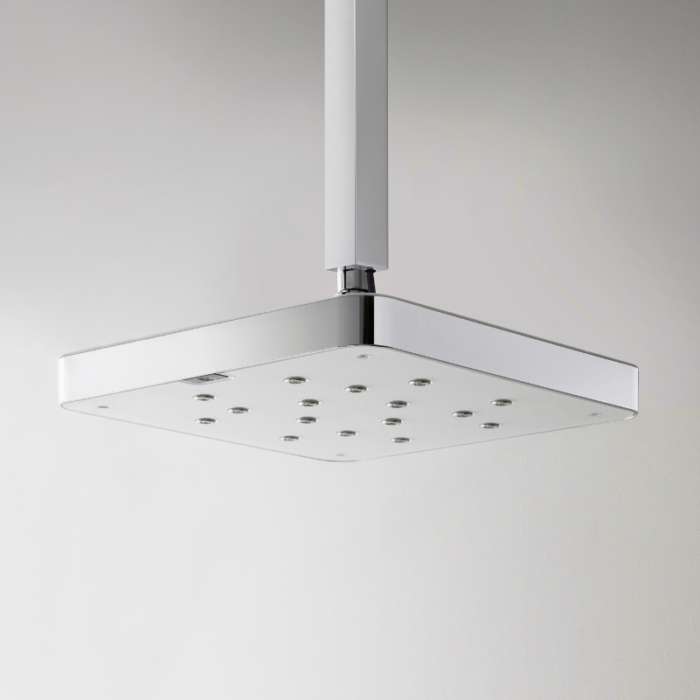

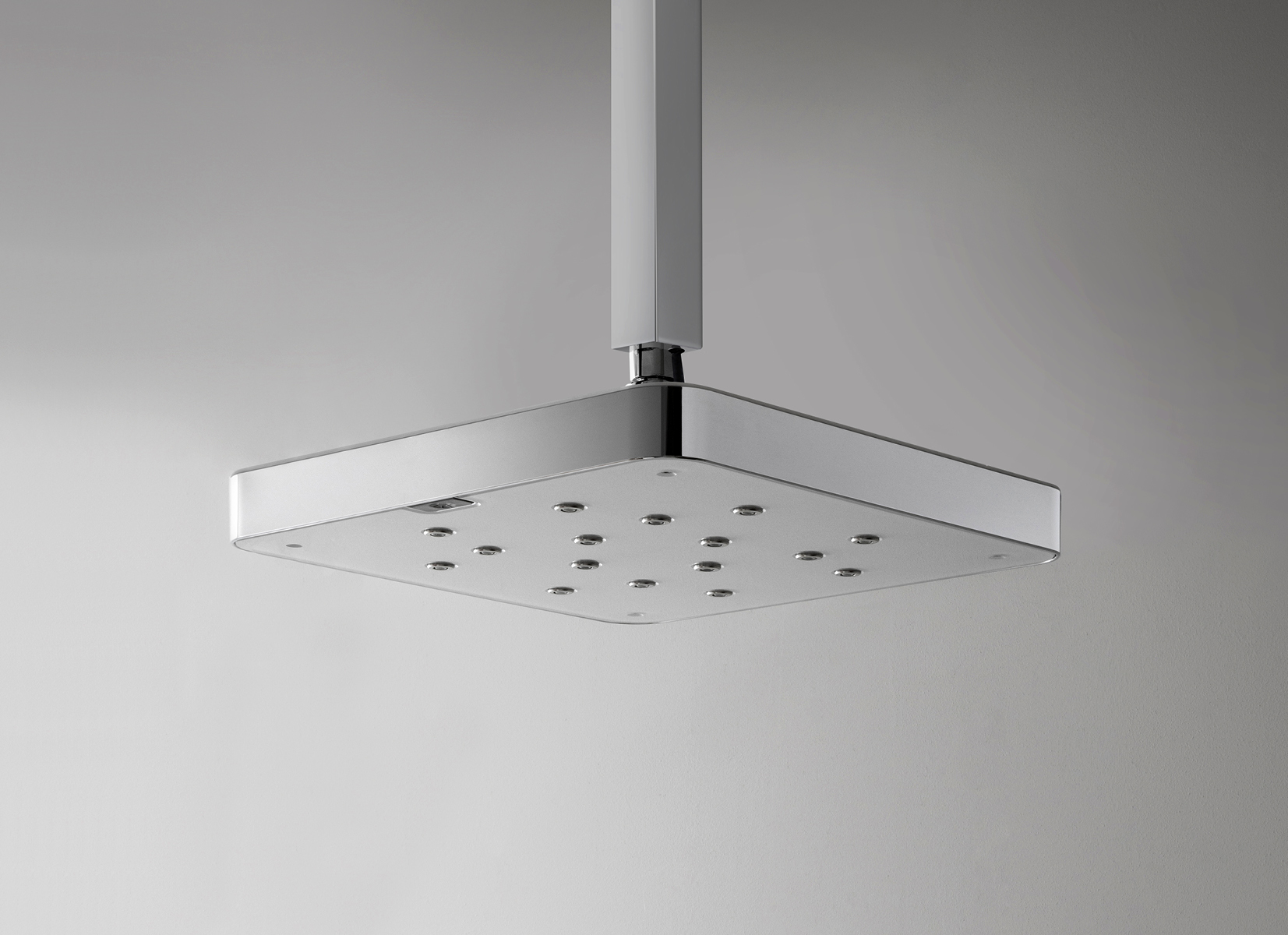

BubbleSpa® Overhead Shower
95002000 OVERHEAD SHOWER FOR CEILING MOUNTING
● Overhead shower 300 with ceiling arm
● Patented Air-Powered™ technology
● HydrO₂ nozzle technology
● Unique 20mm BubbleRain spray pattern
● Advanced LED lighting
● BubbleTapping shower massage
● 2 year guarantee
● Chrome/White
● Product Code: 95002000
● EAN: 5070000729213
For orders outside of mainland UK and Scotland, excluding the highlands, please email: sales@keldashowers.com
Experience
Spa-Like Experience
Kelda’s BubbleSpa® showers use the science of air and water to create large droplets filled with air that fall softly on the skin for a luxurious shower feel. The result is Kelda’s unique sensory BubbleRain experience.
Shower Therapy
BubbleRain simulates the soft rhythmical fingertip tapping that is synonymous with traditional Swedish massage techniques. Kelda call it BubbleTapping shower therapy designed to revitalise the skin and rinse away stress.
Multi-Sensory
BubbleSpa® transforms the daily shower into a luxury spa experience that you can see, feel and hear. Discrete LEDs illuminate the bubbles which are so big they emit a satisfying sound as they softly tap and burst on the skin.
Technology
Air-Powered™ Technology
BubbleSpa ® is the only shower with Kelda’s patented Air-Powered™ bubble technology inside. The result of over ten years of development and influenced by cutting-edge engineering, this advanced technology ensures unrivalled performance and quality with every drop.
HydrO₂ Nozzles
Within the shower head are positioned sixteen precision engineered HydrO₂ nozzles. The unique annular nozzle is designed using sophisticated computer modelling. As water and air pass through the nozzle, a column of water is formed that breaks into individual bubbles.
High-Definition Design
An intelligent LED lighting system integrated in the overhead shower illuminates each bubble creating a high-definition spray form that defies logic. At the touch of a button the lighting effect can be altered to provide the illusion of three different BubbleRain spray patterns to relax the mind. This is Kelda magic!
LED Spray Form
An intelligent LED lighting system integrated in the overhead shower illuminates each bubble displaying a high-definition spray form that defies logic. BubbleSpa® offers homeowners the option of different lighting effects that give the illusion of three different BubbleRain spray patterns. This is Kelda magic! All lighting modes offer the same unique and relaxing luxury shower experience.
BubbleRain [Drops]
Spray pattern effect using lighting mode 01.
BubbleRain [Chain]
Spray pattern effect using lighting mode 02.
BubbleRain [Stream]
Spray pattern effect using lighting mode 03.
Technical Specification
Electrical Installation
Input:
Input voltage: 100V-240 VAC
Frequency: 47 – 63 Hz
AC Current: 0.4A / 115 VAC, 0.25A / 230 VAC
Output:
DC Voltage: 24 V
Constant Current Region: 13.2 – 24 V
Rated Current: 1.05A
Max Power Consumption: 25.2W (during operation inc. LED)
Standby Power Consumption: 2W
Water ingress protection of transformer: IP67 (Fully encapsulated Class 2 Power Unit)
Air-Powered™
Motor type: Kelda optimised centrifugal digital fan
Motor speed: Max: 6,700 rpm
Operating airflow: 9.6 m3/h
Static Pressure: Max. 170 Pa
Housing materials: Plastic
Sound power level: Exemplary quiet-running noise level of just 55 dB(A)
Construction
Overhead shower: ABS (body), PMMA (face plate), Stainless steel (nozzles)
Ceiling arm: Stainless Steel (body)
Operation
Control type: Requires suitable mixer
Water
Water ingress protection rating of overhead shower: IPX4
Water flow rate: 10.0 l/min (overhead shower)
Materials:WRAS approved product
Minimum Working Pressure (Dynamic): 1.5bar / 0.15MPa
Maximum Working Pressure (Dynamic): 5bar / 0.5MPa
Inlet Feed: Mixed
Inlet Connection: 15mm pipework
Logistics
| Part No. | Packaged Dimensions (mm) | Packaged Weight (kgs) |
| 95001000 | L620 x W450 x D290 | 12.0 |
| 95002000 | L620 x W450 x D290 | 12.0 |
| 95003000 | L760 x W480 x D340 | 18.2 |
| 95004000 | L760 x W480 x D340 | 18.2 |
| 95005000 | L1290 x W450 x D290 | 22.8 |
Components
- BubbleSpa® overhead shower
- Ceiling arm
- Power supply
- Instruction Manual
- Fitting kit
Standard guarantee
2-year guarantee
